1. Dimmable 5%-100% , Compatible with Trailing and Universal dimmer
2. CRI>80

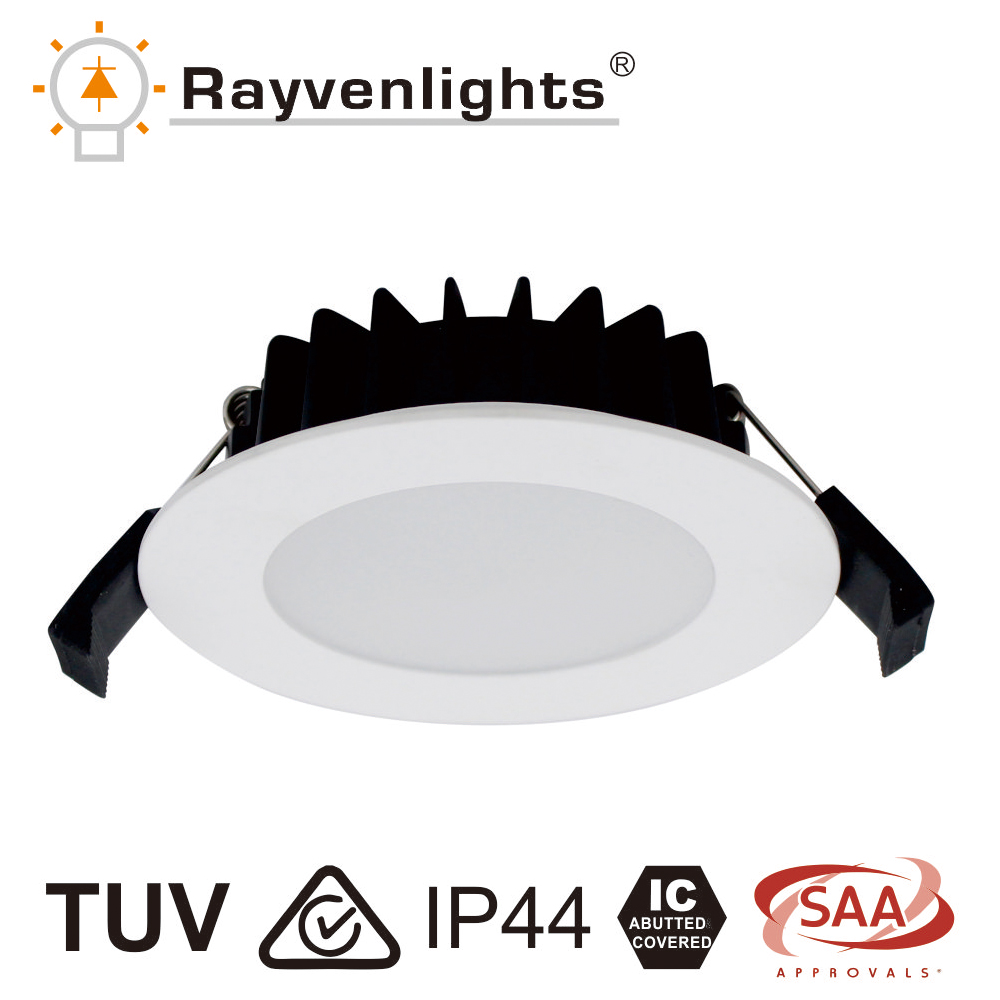

3. Fixed led downlight,SMD Epistar chip

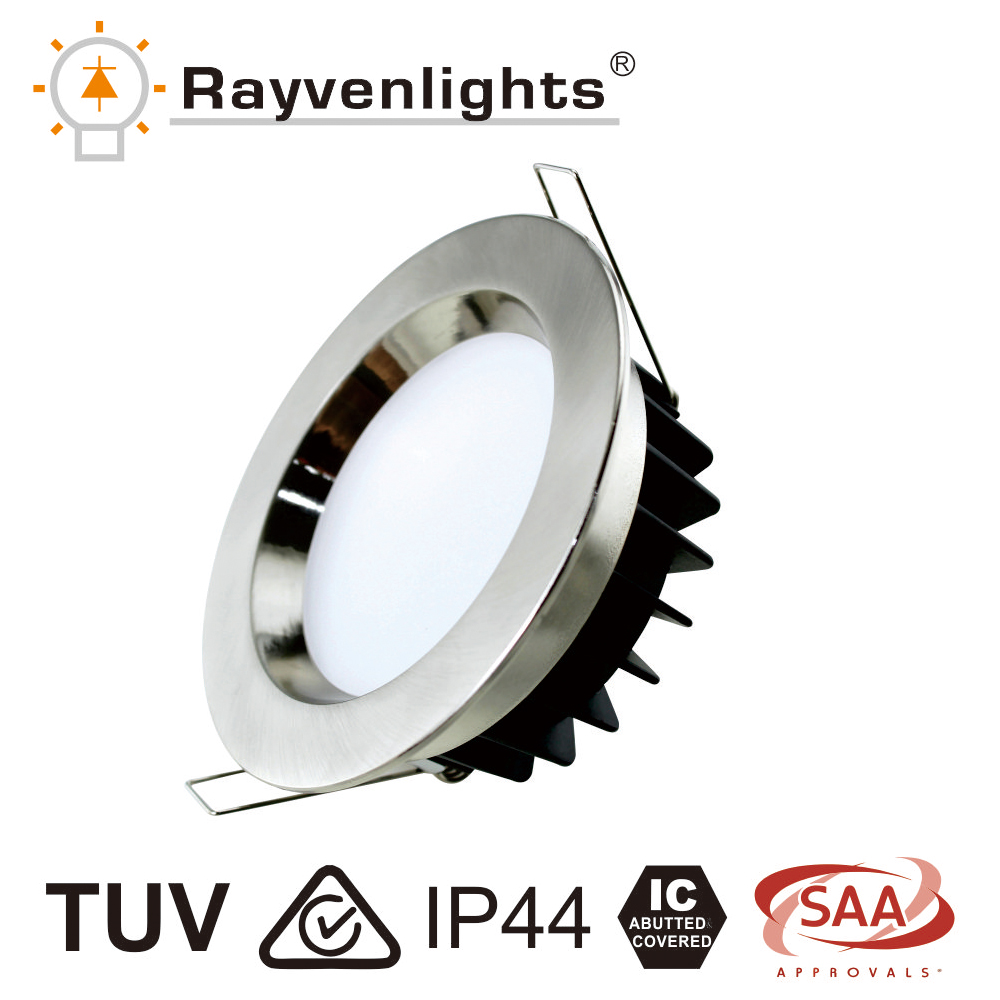

4. White/satin chrome housing for your choice
5. Good Choice for your indoor lights
6. High energy efficiency, saving up 80% energy
7. With SAA/ C-TICK/ ROHS/CE certification
Technical Details
Input Voltage | AC180-240v |
Power Consumption | 12w |
Lighting Technology | SMD LED Episatr |
Beam angle | 120° |
Lumens | 900-1000lm |
Color Temperature | 3000k 4000k 6000k |
Average Rated Life | 50,000h |
CRI | 80+ |
Warranty | 3 |
Size | 102(dia)*45mm(H) |
Energy Saving | Yes, saving over 80% of energy in comparison to the traditional downlight |
Room Type Indoor application | Bedroom, Dining Room, Garage, Home Theatre, Kitchen, Laundry, Living Room, Study, Meeting Room Office etc. |
Dimmable | yes compatible with Leading, universal, trailing edge dimmers |
Environmental friendly – fully recyclable, no mercury or other hazardous materials | |
Information

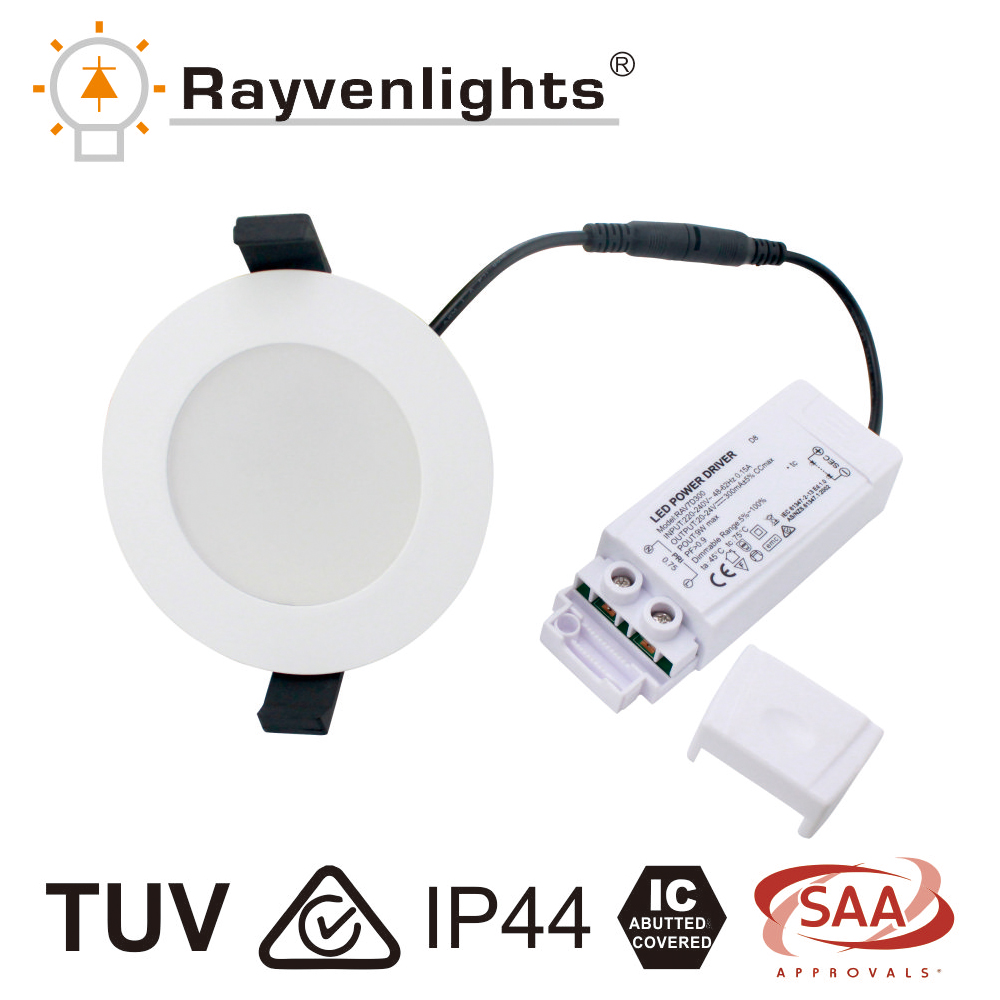

The 12W SMD Downlight kits comes with a Fixed Round Frame, dimmable led driver and Australia standard 1.2meter plug and lead.
With a plug and lead, DIY installation is available provided that there is an existing plug in the roof. Or they can be hard wired by an electrician if you require it
With 120° beam angle, it means no shadows map on the floor, which allows to space the downlight installed 4.5 meter apart.
With 900-1000 lumens output, it is a ideal ideal replacement for existing halogen downlights.
With 90mm cutout size, you can easily fit it into existing downlight holes.

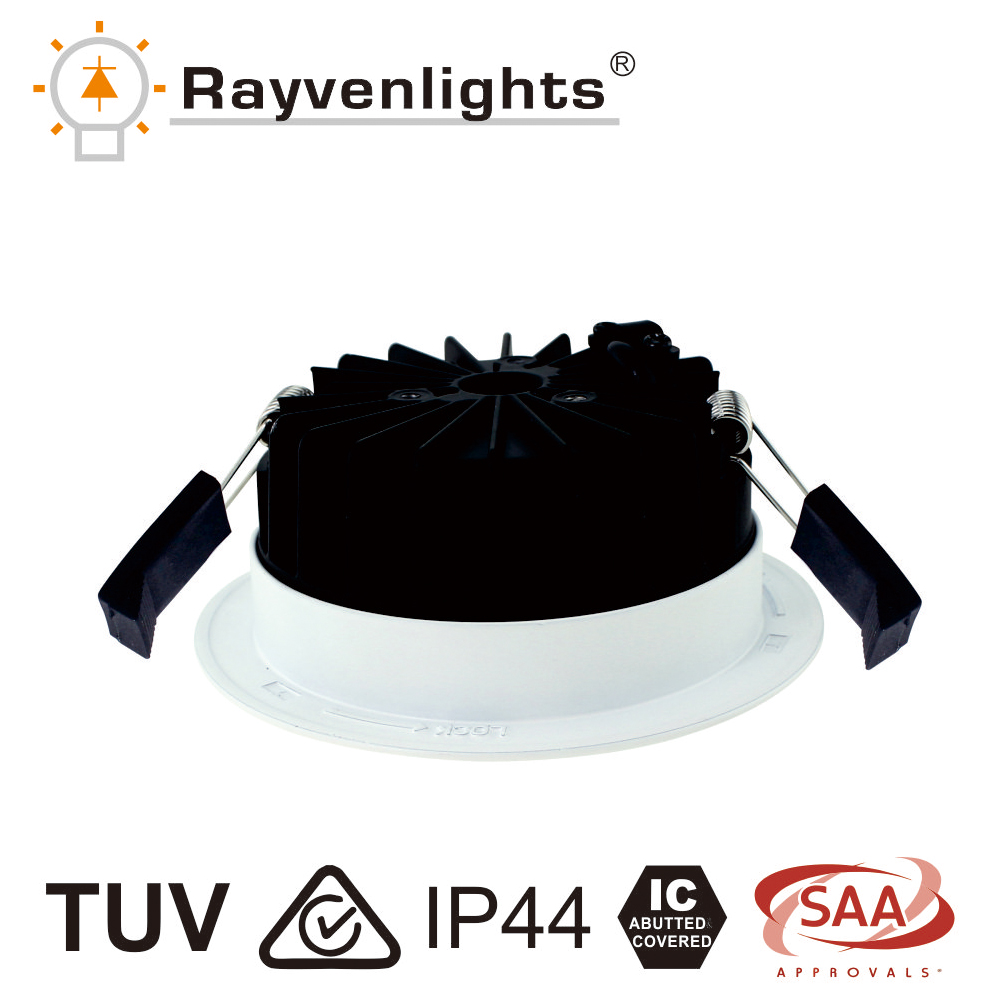

The modern ultrathin design with only 45mm will save the ceiling height for you.
Specification
Similar related SMD LED Downlight item suggested
RAV 1201-CL130 (SMD LED Downlight) | ||
Input Voltage | AC110-240V 50/60Hz AC180V-240V 50/60 HZ dimmable Driver | |
power | 13w | 15w |
Lumens | 950-1050LM | 1350-1450LM |
Beam Angle | 120° | |
Life time | >50000h | |
IP Rate | 50 | |
Color temperature | 3000k/4000K/6000k | |
Shell material | Aluminum | |
down light size | Φ109X 60mm | Φ109X 75mm |
Cut out Size | Φ 92mm | |
Net Weight | 300g | 500g |
No UV and No Infrared | ||
Aluminum reflector to reduce glare and light intensity | ||
No multiple shadows | ||
Application: Bedroom, Dining Room, Garage, Home Theatre, Kitchen, Laundry, Living Room, Study, Meeting Room, Office | ||
other related SMD LED Downlight
Model | Voltage | Power | Lumens | LED Type | Color | Cuout(mm) |
RAV1201-CL110 Size(mm) 102Dia*50H | AC110-265v Dimmable:180-240v | 10w | 750-800lm | Epistar | 3000K4000k6000K | 90mm |
RAV1201-CL120 Size(mm) 50Dia*85H | AC110-265v Dimmable:180-240v | 12W | 900-1000lm | Epistar | 3000K4000K6000K | 90mm |
RAV1201-CL130 Size(mm) 109Dia*53H | AC110-265v Dimmable:180-240v | 13W | 950-1050lm | Epistar | 3000K400065000k | 92mm |
RAV1201-CL150 Size(mm) 109Dia*73H | AC110-265v Dimmable:180-240v | 15W | 1250-1350lm | Epistar | 3000K4000K6000K | 92mm |
Price term: EXW 3 Year warranty neutral packing withou our logo
